Stainless Steel Touchscreen Display HMI for Washdown and Hygienic/Aseptic Environments
The 32” Interactive Touch Display HMI is a sealed stainless steel (304 or 316 options) workstation designed for industrial environments requiring rugged construction and washdown capability.
Constructed from polished stainless steel, the enclosure is built for durability and easy cleaning in sanitary production environments such as food processing, pharmaceutical manufacturing, and clean room facilities.
The integrated 32” projected capacitive multi-touch display supports glove operation and provides Full HD resolution (1920 × 1080) for industrial applications including recipe monitoring, process monitoring, and data visualization.
The enclosure includes sealed cable glands, through-panel USB connectors, and internal power distribution to securely integrate your PC or thin client while maintaining NEMA 4X / IP69 environmental protection.

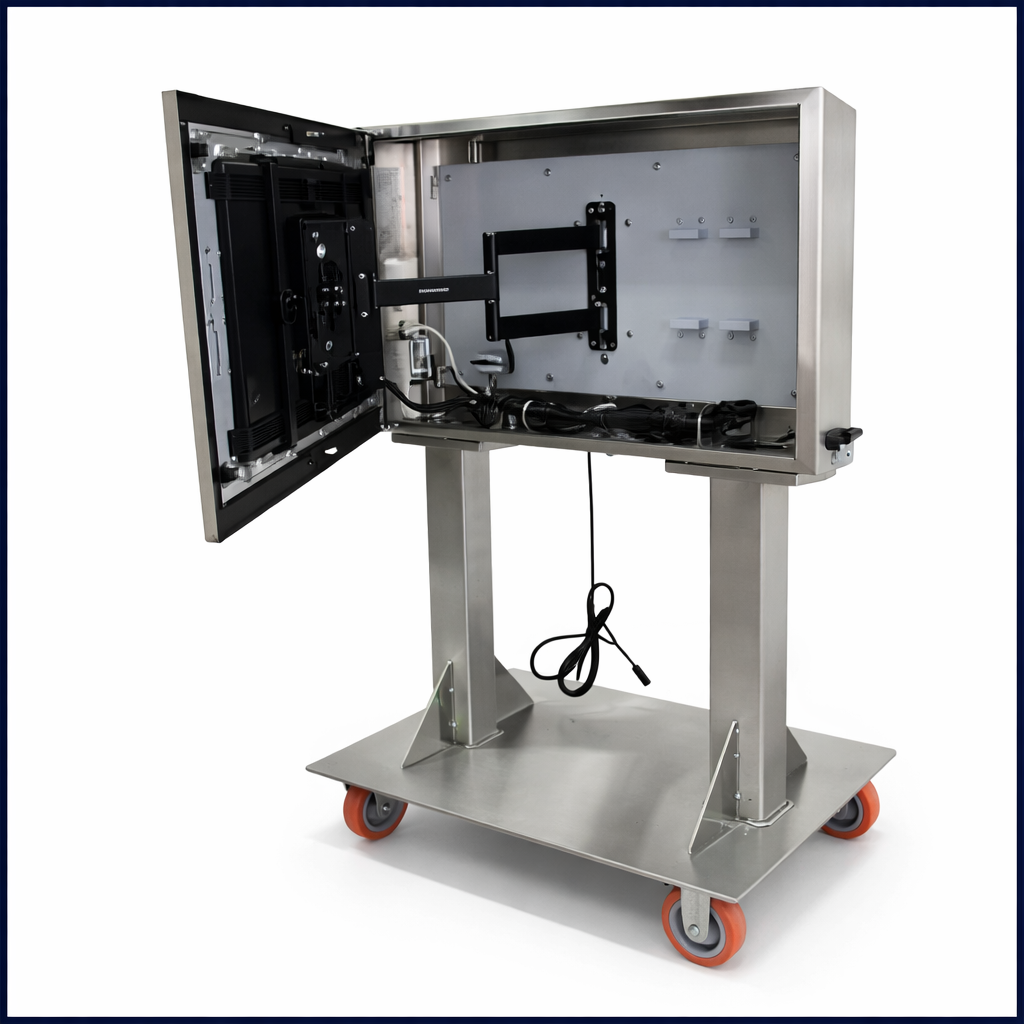

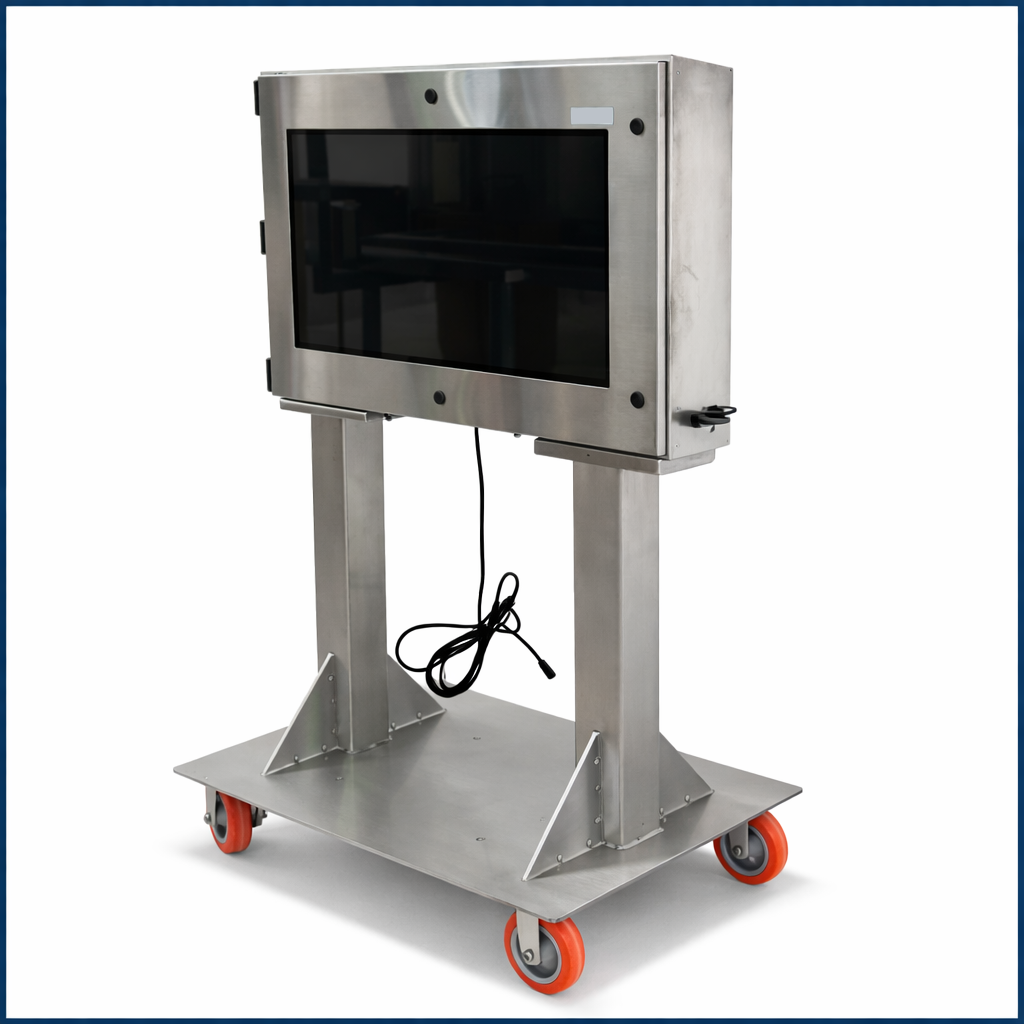

Image shown with optional Mobile Mounting system attached.
Featured Specifications
SUS 304 or 316 stainless steel for ease of cleaning in hygienic/aseptic clean room environments
32” multi-touch glove friendly projected capacitive screen
Easy installation for your PC or thin client, no need for proprietary equipment
Sealed connections for ethernet, power and 2x USB
Wireless options
Mobile (shown) / Wall / Ceiling mounting options
Technical Specifications
Display
Size: 31.5” TFT LCD
Projected capacitive touch
Maximum Resolution: 1920 × 1080
Contrast Ratio: 3000:1
Aspect Ratio: 16:9
Brightness: 450 nits
View Angle: H: 178˚, V: 178˚
Video Port: 1x HDMI / 1x DisplayPort / 1x VGA
Enclosure
NEMA 4X / IP69
304 or 316 polished stainless steel construction
Dimensions: 36” W × 6.7” D × 24.5” H
Removable front door for easy maintenance access
Knife edge door opening with full gasket seal
Sloped top
Keyed access latches
External push button on/off switch
15’ power cord
2x cable glands for power and ethernet
2x quick disconnect USB through panel
Power distribution panel and terminal blocks
Blind inserts to accept mounting options
