Stainless Steel Touchscreen Display HMI for Washdown and Hygienic/Aseptic Environments
The 55” Interactive Touch Display HMI is a sealed stainless steel designed for hygienic/aseptic manufacturing floors in the pharmaceutical world. Built from polished stainless steel (304 or 316), the enclosure supports frequent cleaning and long-term durability in food processing, pharmaceutical manufacturing, clean room, and other hygienic/aseptic production environments.
The integrated 55” multi-touch projected capacitive display supports glove-friendly operation and provides 4K resolution (3840 × 2160) for clear visualization of process data, dashboards, and control systems.
The enclosure provides secure internal mounting for a PC or thin client, eliminating the need for proprietary hardware. Sealed cable glands and through-panel connections provide protected access for ethernet, power, and USB devices while maintaining NEMA 4X / IP69 environmental protection.

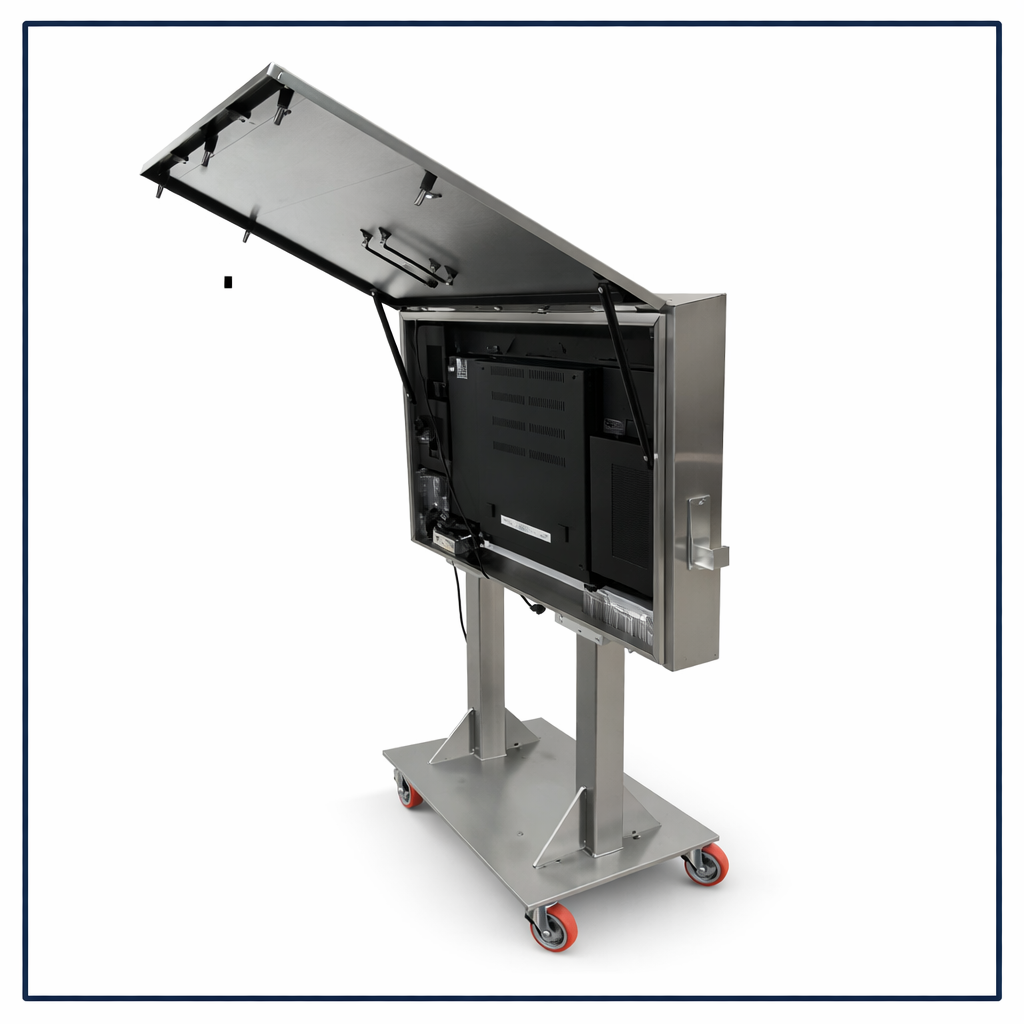

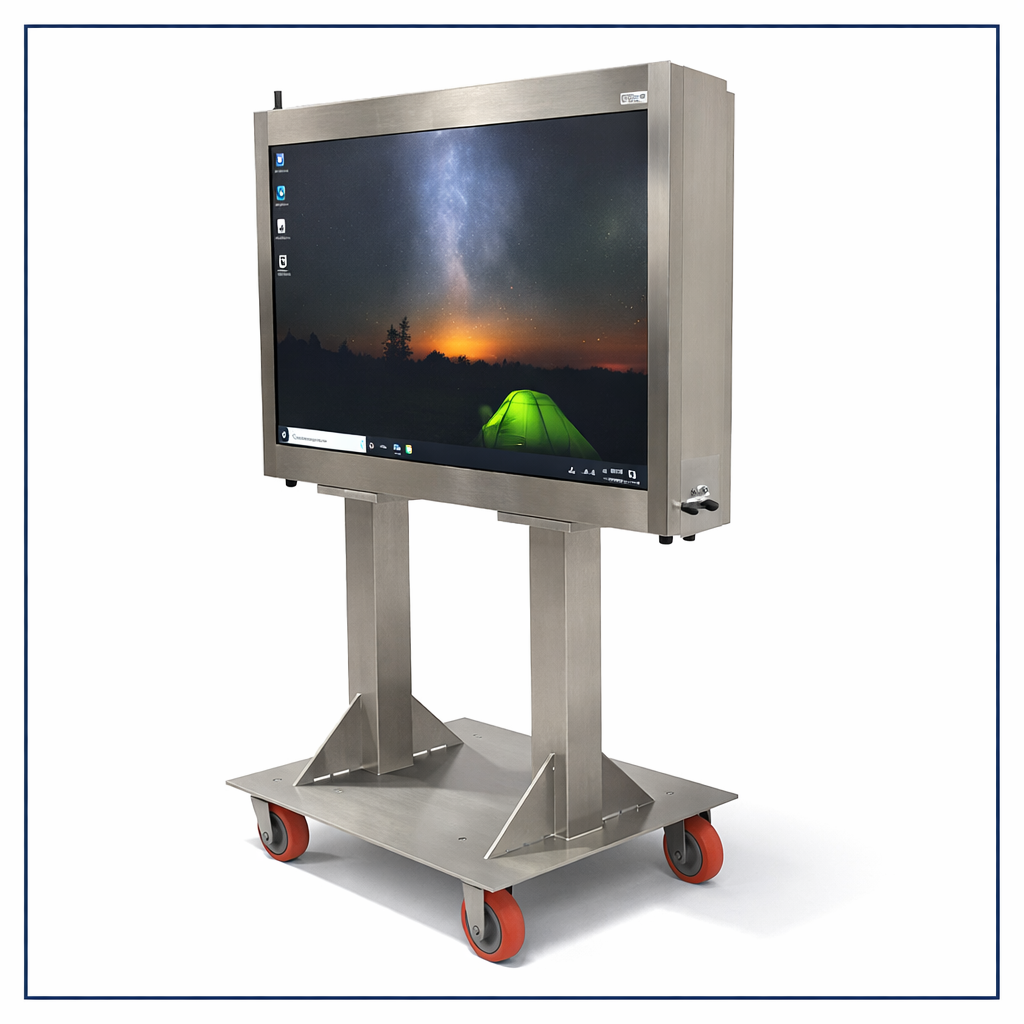

Image shown with optional Mobile Mounting system attached.
Featured Specifications
SUS 304 stainless steel for ease of cleaning in hygienic/aseptic clean room environments
55” multi-touch glove friendly projected capacitive screen
Easy Installation for your PC or thin client, no need for proprietary equipment
Sealed connections for ethernet, power and 2x USB
Wireless Options
Mobile (shown) / Wall / Ceiling mounting options
Technical Specifications
Display
Size: 55” TFT LCD
Projected capacitive touch
Maximum Resolution: 3840 × 2160
Contrast Ratio: 1200:1
Aspect Ratio: 16:9
Brightness: 450 nits
View Angle: H: 178˚, V: 178˚
Video Port: 2x HDMI / 1x DisplayPort / 1x VGA
Enclosure
NEMA 4X / IP69
304 and 316 polished stainless steel construction options
Dimensions: 53” W × 7” D × 35” H
Knife edge opening design with full gasket seal
Rear door for easy maintenance
Keyed access latches
External push button on/off switch
15’ power cord
2x cable glands for power and ethernet
2x quick disconnect USB through panel
Power distribution panel with 4 outlet industrial grade surge suppressor
