Stainless Steel Touchscreen Display HMI for Washdown and Hygienic/Aseptic Environments

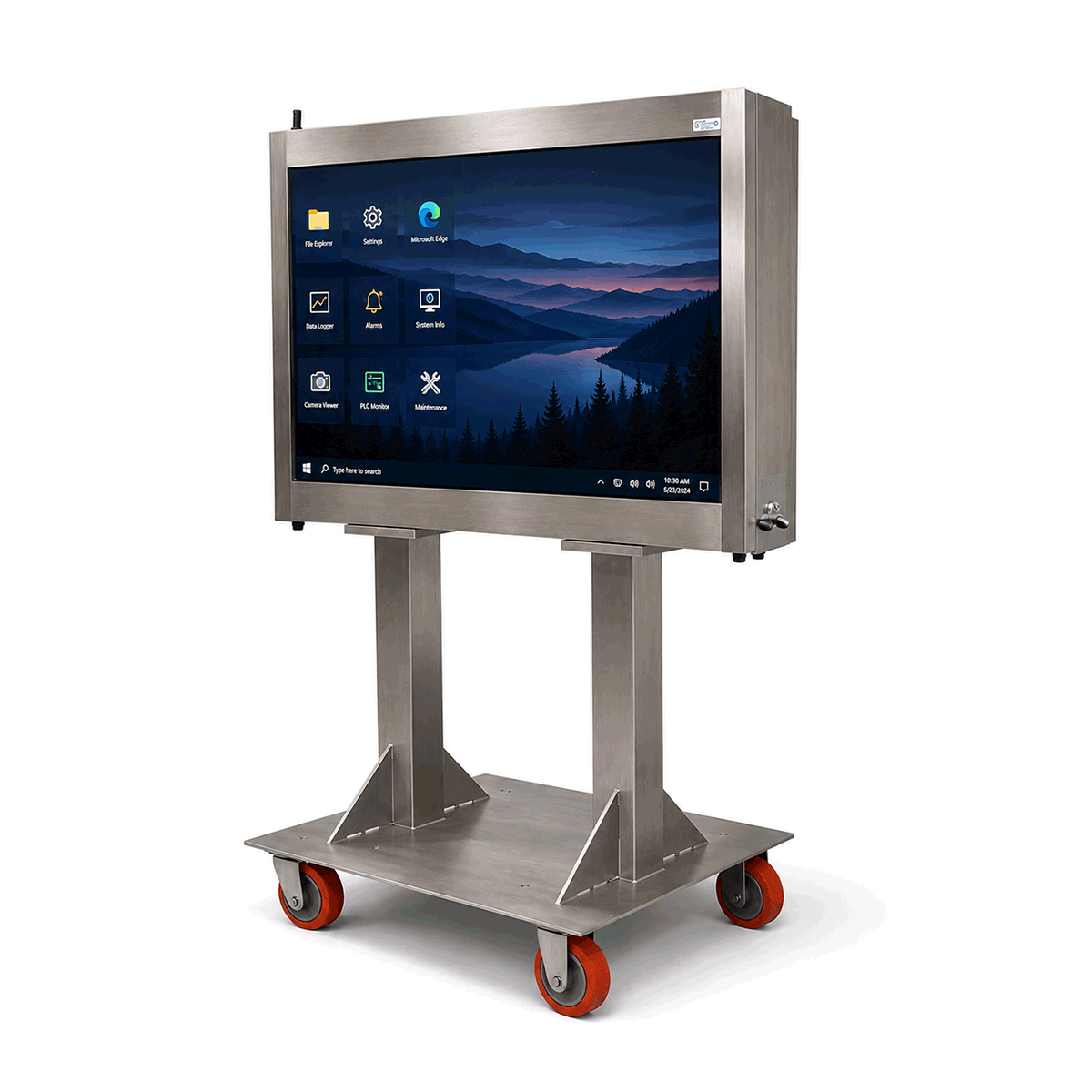

The 55” Interactive Touch Display HMI is a sealed stainless steel designed for hygienic/aseptic manufacturing floors in the pharmaceutical world. Built from polished stainless steel (304 or 316), the enclosure supports frequent cleaning and long-term durability in food processing, pharmaceutical manufacturing, clean room, and other hygienic/aseptic production environments.

The integrated 55” multi-touch projected capacitive display supports glove-friendly operation and provides 4K resolution (3840 × 2160) for clear visualization of process data, dashboards, and control systems.

The enclosure provides secure internal mounting for a PC or thin client, eliminating the need for proprietary hardware. Sealed cable glands and through-panel connections provide protected access for ethernet, power, and USB devices while maintaining NEMA 4X / IP69 environmental protection.

Image shown with optional Mobile Mounting system attached.

Featured Specifications

• SUS 304 stainless steel for ease of cleaning in hygienic/aseptic clean room environments

• 55” multi-touch glove friendly projected capacitive screen

• Easy Installation for your PC or thin client, no need for proprietary equipment

• Sealed connections for ethernet, power and 2x USB

• Wireless Options

• Mobile (shown) / Wall / Ceiling mounting options

Technical Specifications

Display

• Size: 55” TFT LCD

• Projected capacitive touch

• Maximum Resolution: 3840 × 2160

• Contrast Ratio: 1200:1

• Aspect Ratio: 16:9

• Brightness: 450 nits

• View Angle: H: 178˚, V: 178˚

• Video Port: 2x HDMI / 1x DisplayPort / 1x VGA

Enclosure

• NEMA 4X / IP69

• 304 and 316 polished stainless steel construction options

• Dimensions: 53” W × 7” D × 35” H

• Knife edge opening design with full gasket seal

• Rear door for easy maintenance

• Keyed access latches

• External push button on/off switch

• 15’ power cord

• 2x cable glands for power and ethernet

• 2x quick disconnect USB through panel

• Power distribution panel with 4 outlet industrial grade surge suppressor

Stainless Steel Touchscreen Display HMI for Washdown and Hygienic/Aseptic Environments

The 32” Interactive Touch Display HMI is a sealed stainless steel (304 or 316 options) workstation designed for industrial environments requiring rugged construction and washdown capability.

Constructed from polished stainless steel, the enclosure is built for durability and easy cleaning in sanitary production environments such as food processing, pharmaceutical manufacturing, and clean room facilities.

The integrated 32” projected capacitive multi-touch display supports glove operation and provides Full HD resolution (1920 × 1080) for industrial applications including recipe monitoring, process monitoring, and data visualization.

The enclosure includes sealed cable glands, through-panel USB connectors, and internal power distribution to securely integrate your PC or thin client while maintaining NEMA 4X / IP69 environmental protection.

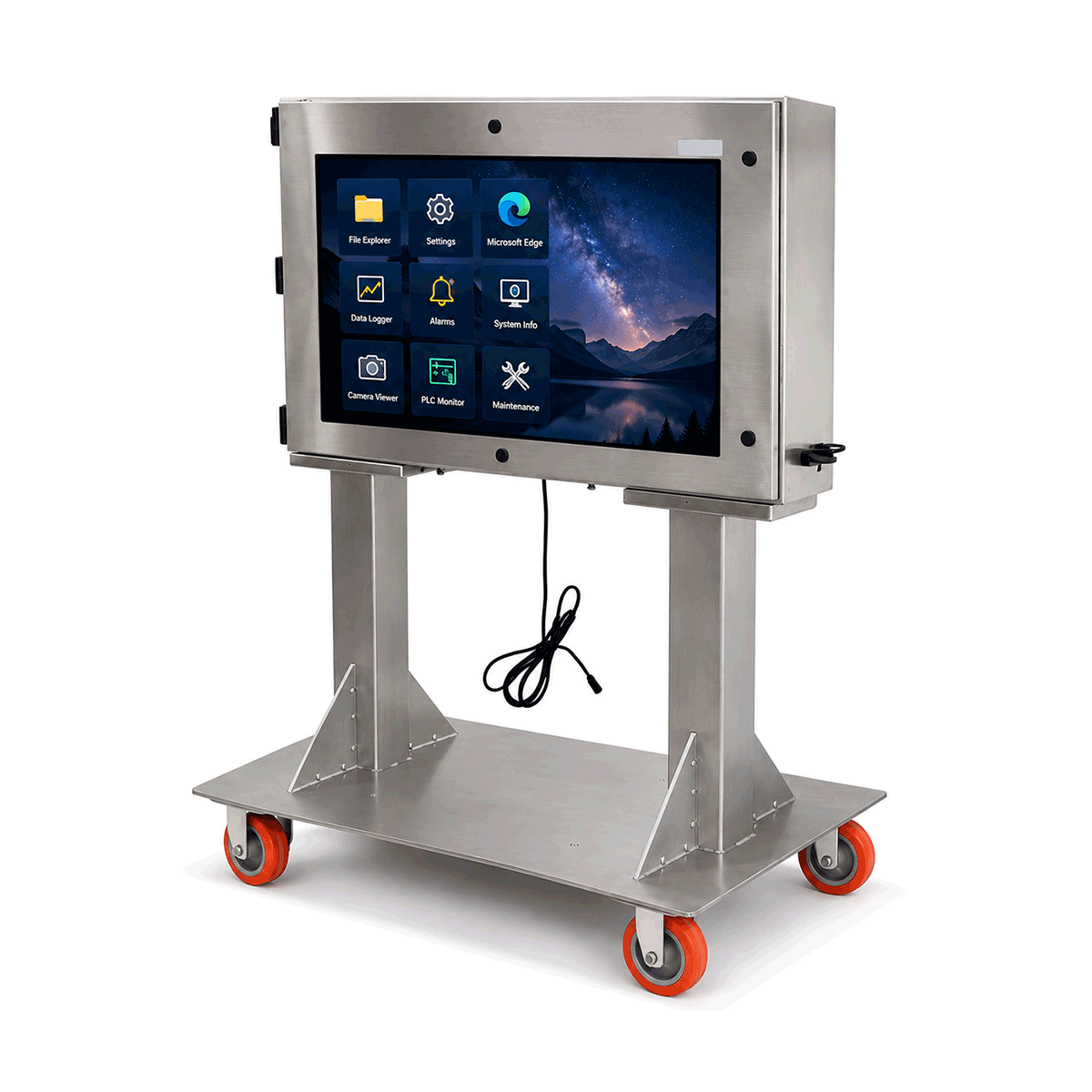

Image shown with optional Mobile Mounting system attached.

Featured Specifications

• SUS 304 or 316 stainless steel for ease of cleaning in hygienic/aseptic clean room environments

• 32” multi-touch glove friendly projected capacitive screen

• Easy installation for your PC or thin client, no need for proprietary equipment

• Sealed connections for ethernet, power and 2x USB

• Wireless options

• Mobile (shown) / Wall / Ceiling mounting options

Technical Specifications

Display

• Size: 31.5” TFT LCD

• Projected capacitive touch

• Maximum Resolution: 1920 × 1080

• Contrast Ratio: 3000:1

• Aspect Ratio: 16:9

• Brightness: 450 nits

• View Angle: H: 178˚, V: 178˚

• Viewable Diagonally: 31.5”

• Video Port: 1x HDMI / 1x DisplayPort / 1x VGA

Enclosure

• NEMA 4X / IP69

• 304 or 316 polished stainless steel construction

• Dimensions: 36” W × 6.7” D × 24.5” H

• Removable front door for easy maintenance access

• Knife edge door opening with full gasket seal

• Sloped top

• Keyed access latches

• External push button on/off switch

• 15’ power cord

• 2x cable glands for power and ethernet

• 2x quick disconnect USB through panel

• Power distribution panel and terminal blocks

• Blind inserts to accept mounting options

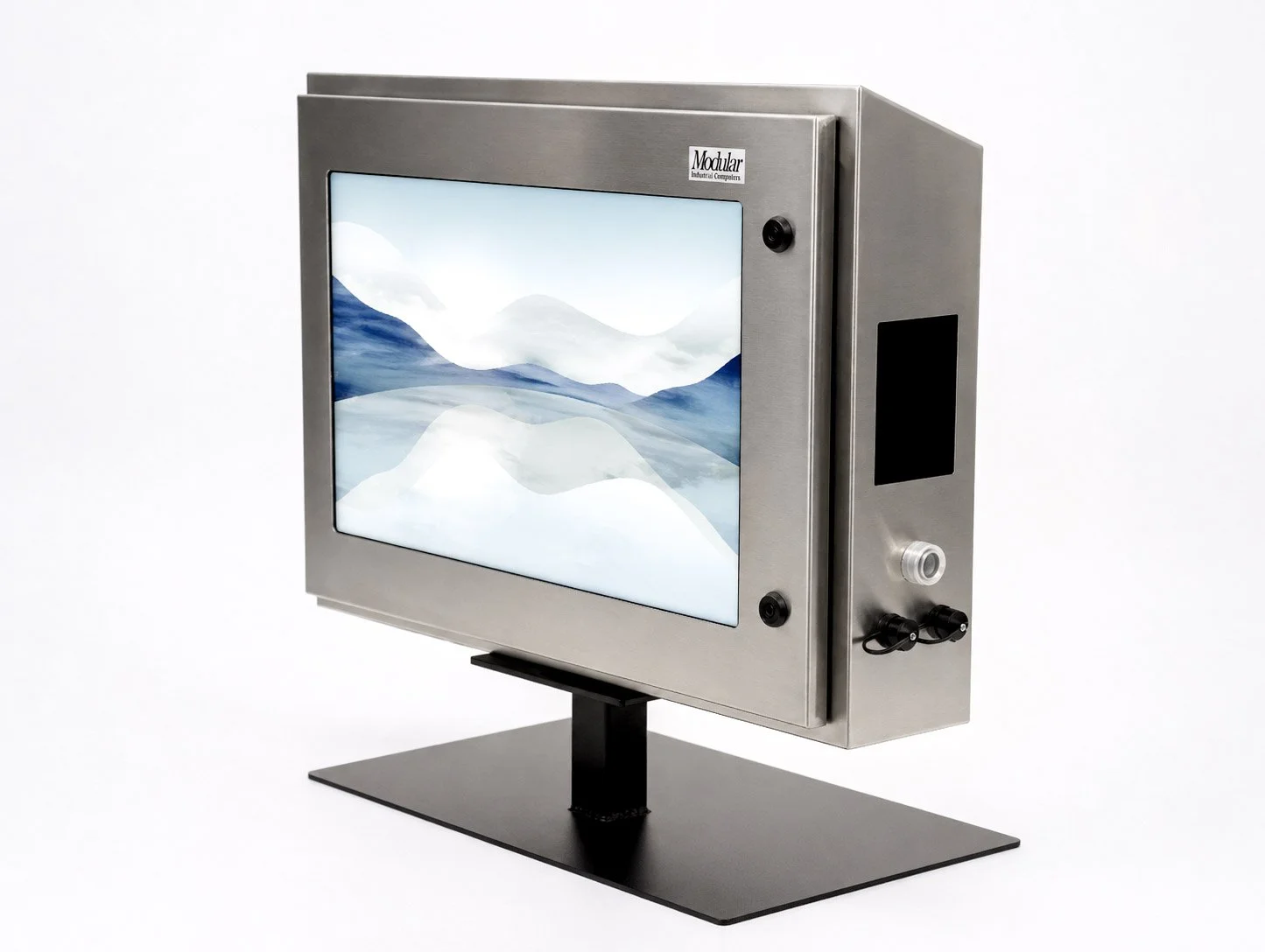

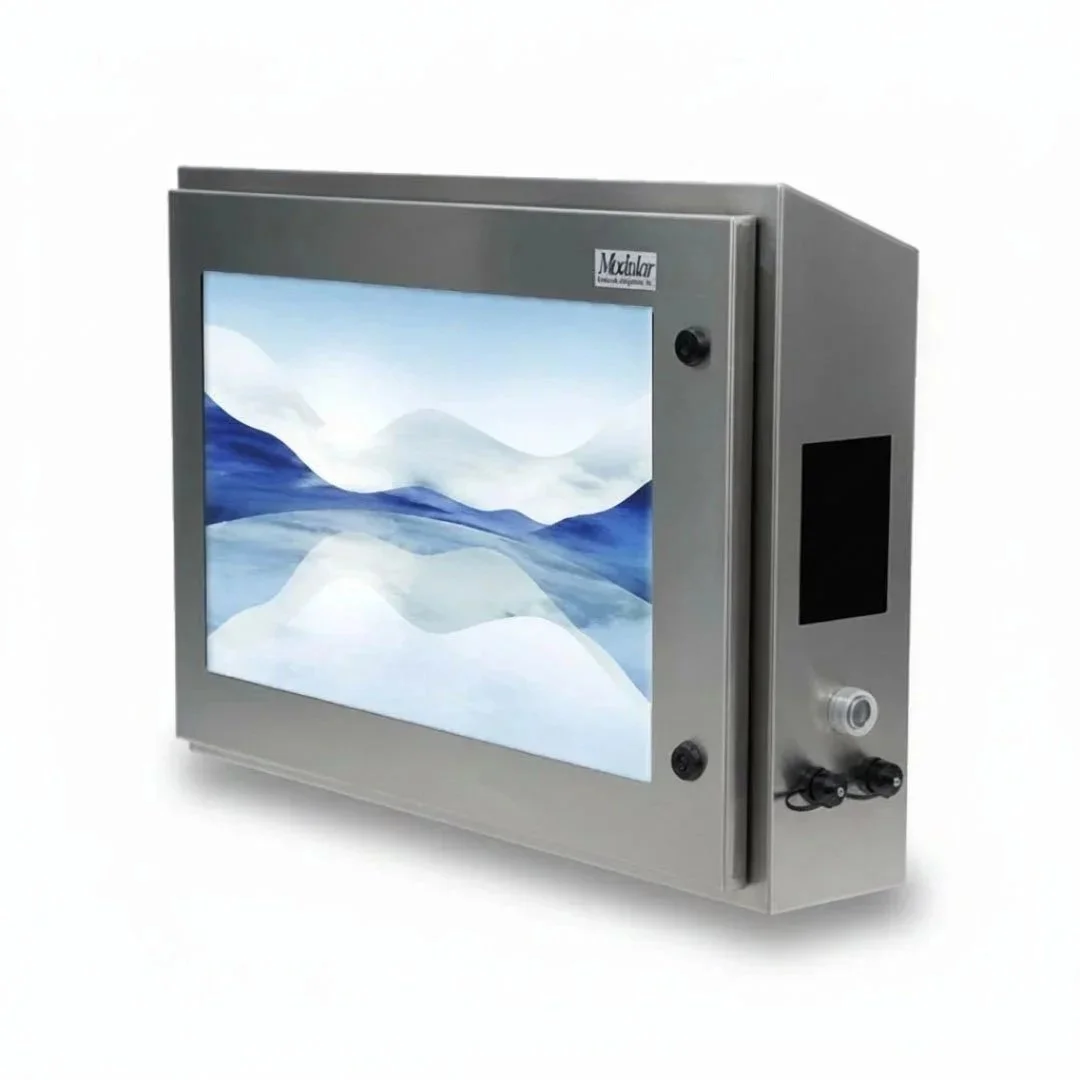

Stainless Steel, Sloped Top

NEMA 4X certified, featuring a sloped top and a 24-inch display.

Modular’s FS PowerBox Has A Wide Variety Of Mounting Options Specifically Designed To Provide The Ergonomic Functions That Will Enable The User To Most Efficiently And Safely Use The Product.

Enclosure Features:

• Dimensions: 29" W x 6.375”D x 19.95”H

• 304 Polished Stainless Steel for NEMA 12, 4, or 4X environments

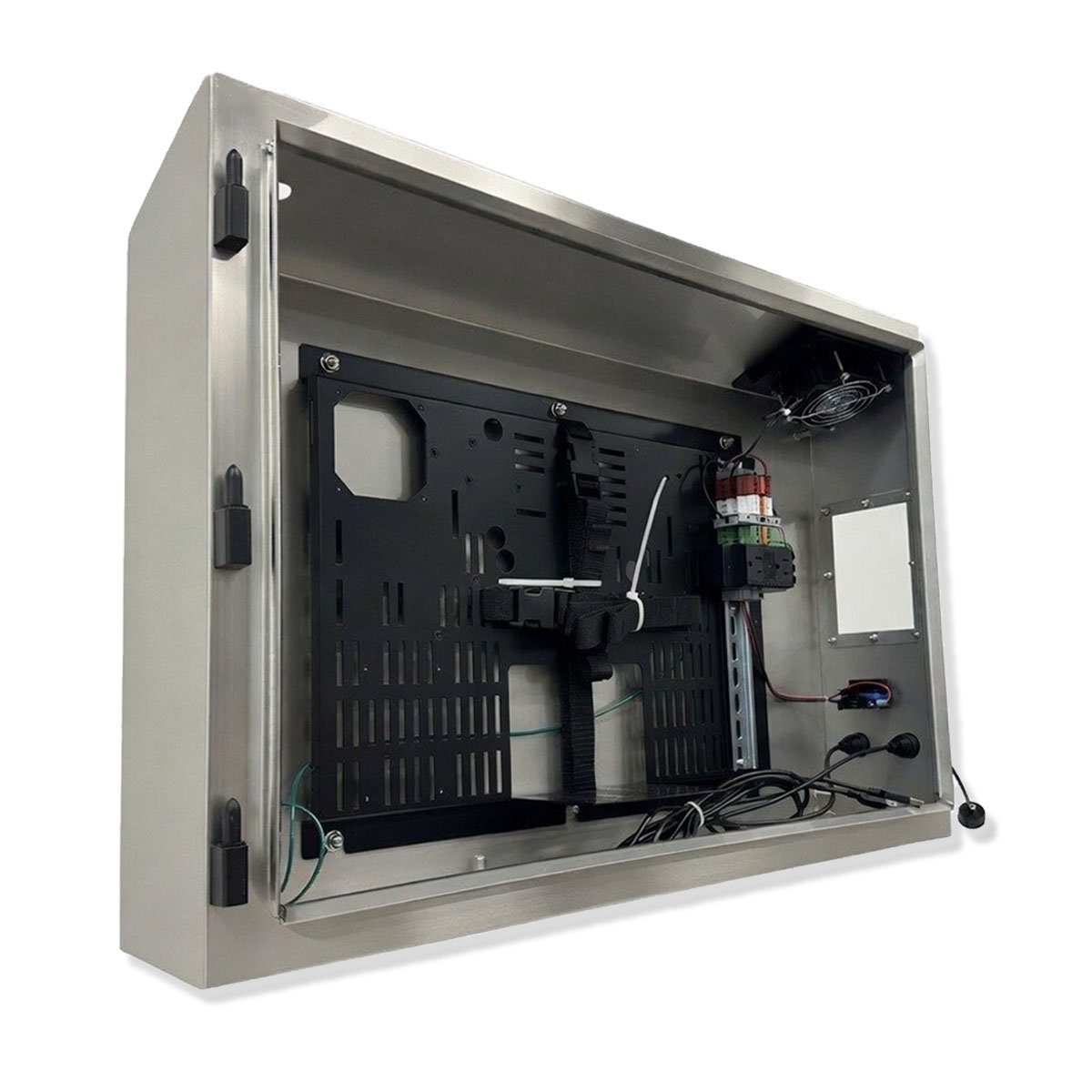

• Back plate designed to accept small form factor PC

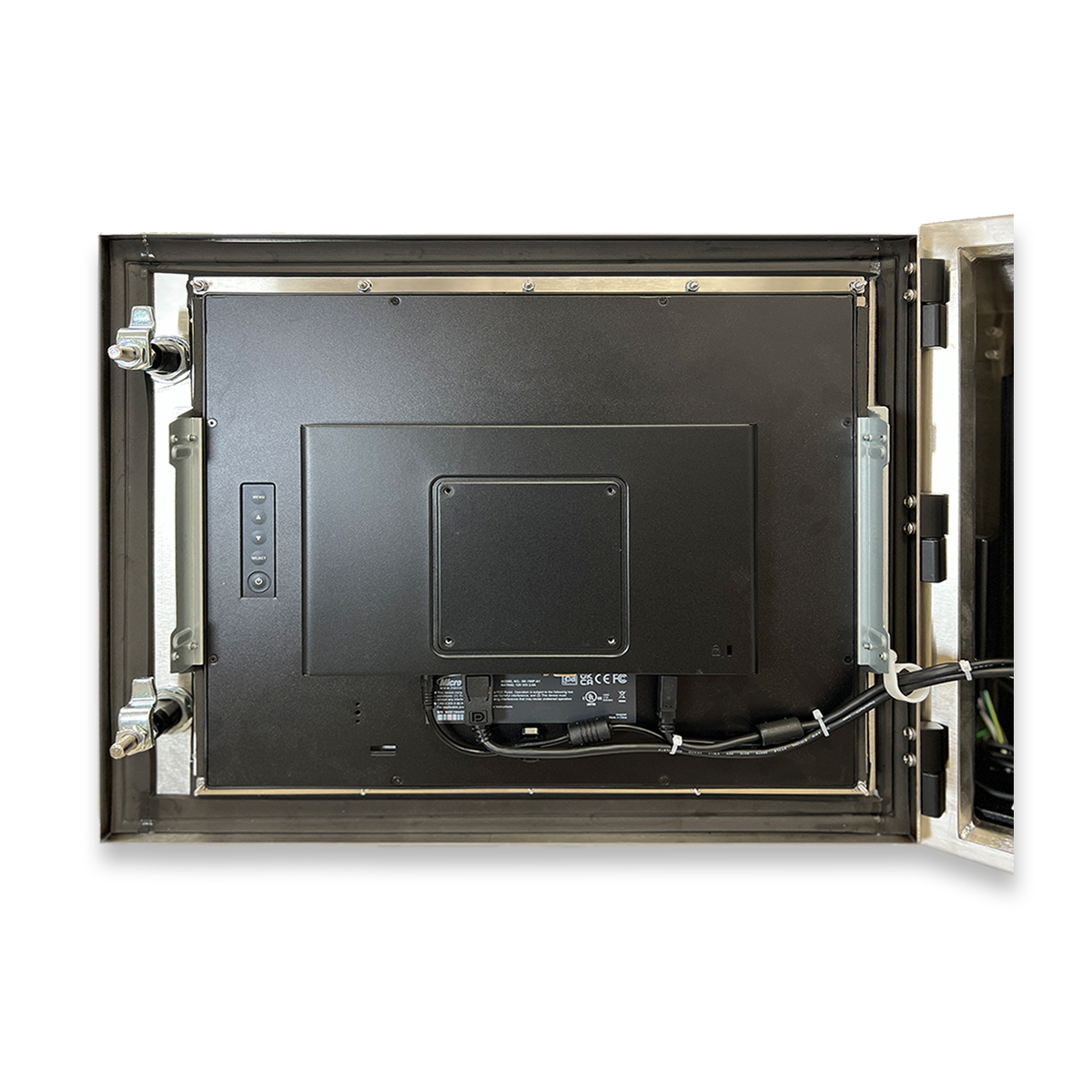

• Removable front door for easy maintenance access

• “Rain Gutter” - prevents water from entering enclosure when door is opened

• External hinges

• Sloped top for water drainage

• Keyed access latches

• Internal cooling fan

• Accepts optional NEMA 4X connectors for keyboard and mouse

• External power switch

• Bottom mounted breather gland for pressure equalization

Display Features:

• LED backlighting allows for state-of-the-art slim design while reducing power consumption

• Input video format: Analog VGA, HDMI, and DisplayPort

• Brightness: 250 NITS (no touch), 225 NITS (P-Cap touch)

• Contrast Ratio 3000:1

• Aspect Ratio 16:9

• Input Video Frequency: Horizontal 30 - 82 KHz / Vertical 50 - 75 Hz

• Viewable Diagonally: 23.8”

• Resolution: 1920 X 1080

• Operating Temperature 0C to 40C

• Humidity: 20 - 80% non condensing

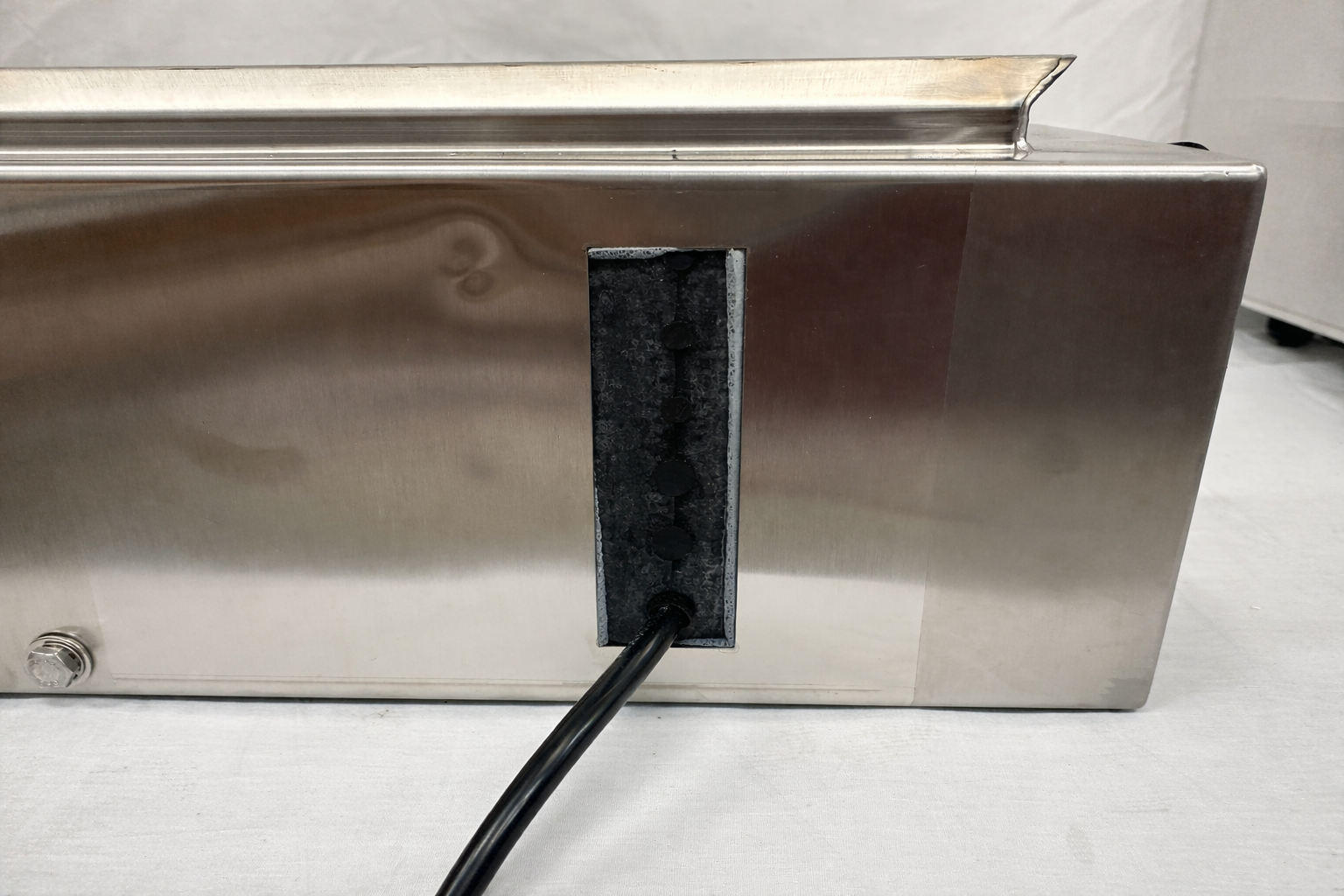

Bottom Mount Cable Compression Box:

• Bottom mount cable entry system

• Route up to 6 cables into enclosure without splicing

• Watertight when properly installed

Wireless Lexan Window:

• Sealed Lexan window allows wireless signals to exit enclosure more efficiently

• Customer provides or specifies wireless device. Device to be located inside the FS PowerBox enclosure

Want to learn more about this product or one of our other solutions? Contact Us!

Stainless Steel, Sloped Top

NEMA 4X certified, featuring a sloped top and a 21-inch display.

Modular’s FS PowerBox Has A Wide Variety Of Mounting Options Specifically Designed To Provide The Ergonomic Functions That Will Enable The User To Most Efficiently And Safely Use The Product.

Enclosure Features:

• Dimensions: 27” W x 8.6”D x 20H

• 304 Polished Stainless Steel for NEMA 12, 4, or 4X environments

• Back plate designed to accept small form factor PC

• Removable front door for easy maintenance access

• “Rain Gutter” - prevents water from entering enclosure when door is opened

• External hinges

• Sloped top for water drainage

• Keyed access latches

• Internal cooling fan

• Accepts optional NEMA 4X connectors for keyboard and mouse

• External power switch

• Bottom mounted breather gland for pressure equalization

Display Features:

• LED backlighting allows for state-of-the-art slim design while reducing power consumption

• Input video format: Analog VGA, HDMI, and DisplayPort

• Brightness: 250 NITS (no touch), 225 NITS (P-Cap touch)

• Contrast Ratio 1000:1

• Aspect Ratio 16:9

• Input Video Frequency: Horizontal 30 - 82 KHz / Vertical 50 - 75 Hz

• Viewable Diagonally: 21.5”

• Resolution: 1920 X 1080

• Operating Temperature 0C to 40C

• Humidity: 20 - 80% non condensing

Bottom Mount Cable Compression Box:

• Bottom mount cable entry system

• Route up to 6 cables into enclosure without splicing

• Watertight when properly installed

Wireless Lexan Window:

• Sealed Lexan window allows wireless signals to exit enclosure more efficiently

• Customer provides or specifies wireless device. Device to be located inside the FS PowerBox enclosure

Want to learn more about this product or one of our other solutions? Contact Us!

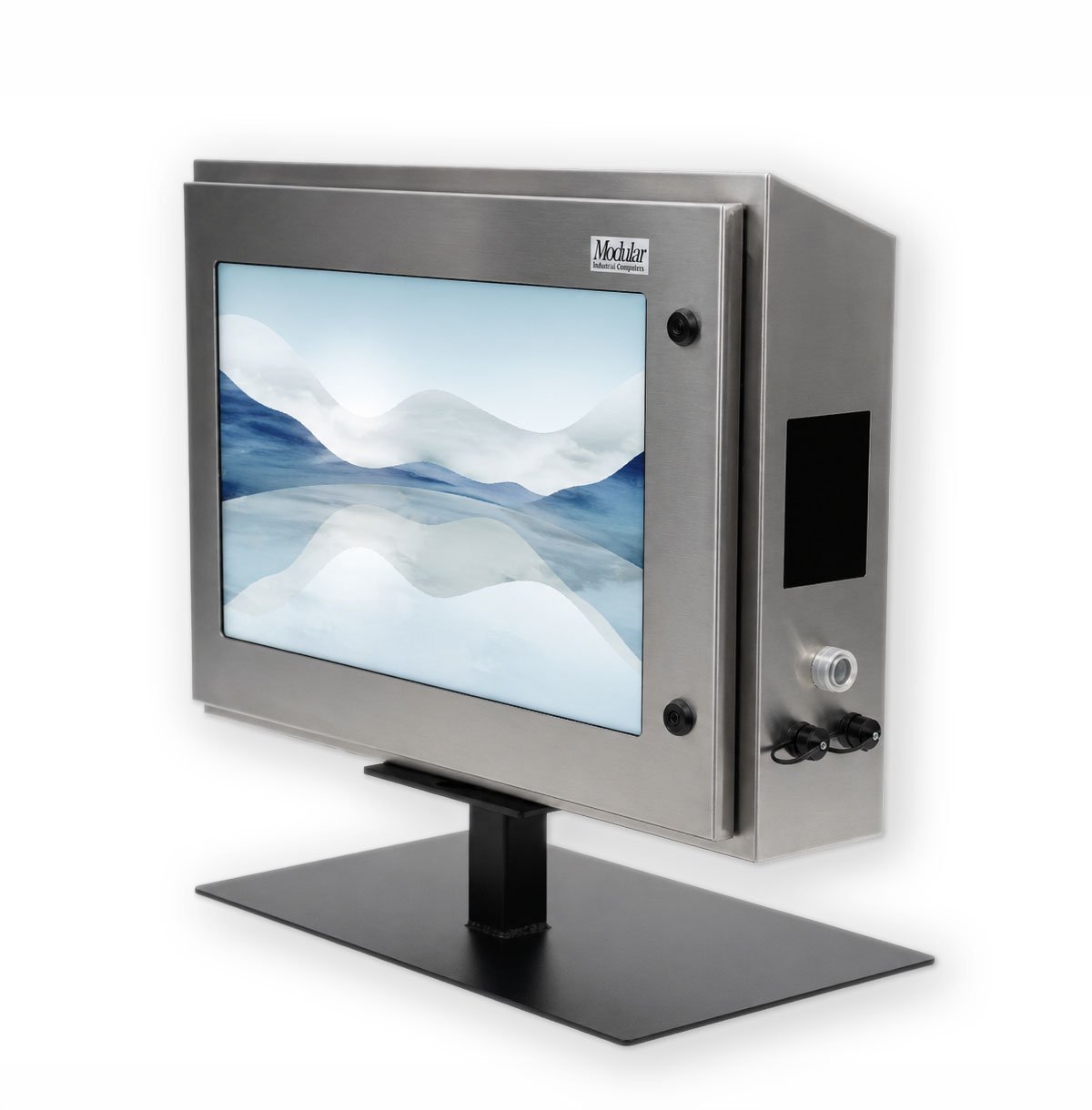

Stainless Steel, Sloped Top

NEMA 4X certified, featuring a sloped top and a 19-inch display.

Modular’s FS PowerBox Has A Wide Variety Of Mounting Options Specifically Designed To Provide The Ergonomic Functions That Will Enable The User To Most Efficiently And Safely Use The Product.

Enclosure Features:

• Dimensions: 22.5" W x 6"D x 23"H

• 304 Polished Stainless Steel for NEMA 12, 4, or 4X environments

• Back plate designed to accept small form factor PC

• Removable front door for easy maintenance access

• “Rain Gutter” - prevents water from entering enclosure when door is opened

• External hinges

• Sloped top for water drainage

• Keyed access latches

• Internal cooling fan

• Accepts optional NEMA 4X connectors for keyboard and mouse

• External power switch

• Bottom mounted breather gland for pressure equalization

Display Features:

• LED backlighting allows for state-of-the-art slim design while reducing power consumption

• Input video format: Analog VGA, HDMI, and DisplayPort

• Brightness: 250 NITS (no touch), 225 NITS (P-Cap touch)

• Contrast Ratio 1000:1

• Aspect Ratio 5:4

• Input Video Frequency: Horizontal 30 - 82 KHz / Vertical 50 - 75 Hz

• Viewable Diagonally: 19”

• Resolution 1280 X 1024

• Operating Temperature 0C to 40C

• Humidity: 20 - 80% non condensing

Bottom Mount Cable Compression Box:

• Bottom mount cable entry system

• Route up to 6 cables into enclosure without splicing

• Watertight when properly installed

Wireless Lexan Window:

• Sealed Lexan window allows wireless signals to exit enclosure more efficiently

• Customer provides or specifies wireless device. Device to be located inside the FS PowerBox enclosure

Want to learn more about this product or one of our other solutions? Contact Us!

Stainless Steel, Sloped Top

NEMA 4X certified, featuring a sloped top and a 17-inch display.

Modular’s FS PowerBox Has A Wide Variety Of Mounting Options Specifically Designed To Provide The Ergonomic Functions That Will Enable The User To Most Efficiently And Safely Use The Product.

Enclosure Features:

• Dimensions: 19”W x 6”D x 15”H

• 304 Polished Stainless Steel for NEMA 12, 4, or 4X environments

• Back plate designed to accept small form factor PC

• Removable front door for easy maintenance access

• “Rain Gutter” - prevents water from entering enclosure when door is opened

• External hinges

• Sloped top for water drainage

• Keyed access latches

• Internal cooling fan

• Accepts optional NEMA 4X connectors for keyboard and mouse

• External power switch

• Bottom mounted breather gland for pressure equalization

Display Features:

• LED backlighting allows for state-of-the-art slim design while reducing power consumption

• Input video format: Analog VGA, HDMI, and DisplayPort

• Brightness: 250 NITS (no touch), 225 NITS (P-Cap touch)

• Contrast Ratio 1000:1

• Aspect Ratio 5:4

• Input Video Frequency: Horizontal 30 - 82 KHz / Vertical 50 - 75 Hz

• Viewable Diagonally: 17”

• Resolution: 1280 X 1024

• Operating Temperature 0C to 40C

• Humidity: 20 - 80% non condensing

Bottom Mount Cable Compression Box:

• Bottom mount cable entry system

• Route up to 6 cables into enclosure without splicing

• Watertight when properly installed

Wireless Lexan Window:

• Sealed Lexan window allows wireless signals to exit enclosure more efficiently

• Customer provides or specifies wireless device. Device to be located inside the FS PowerBox enclosure
